Let’s see some important tips about motherboard.

Motherboard is the most important of Computer hardware. If you want to get good service from your PC so, you have to choose a good brand motherboard. Avoid Via chipset motherboard. You can buy a PC that Intel chipsets -'s motherboard can make it.

Let's see some good brands of motherboards

1.  ASUS Motherboard

• Intel® G41 + ICH7 chipset
• FSB 1333/1066/800 MHz (Front Side Bus)
• ASUS Turbo Key
• ASUS EPU-L
• DX10 Support
• 3D graphics performance



2.         Gigabyte Motherboard
*          Gigabyte GA-G41M-Combo
This motherboard - it will support DDR-2 and DDR-3 Ram.
Dual BIOS
Easy Energy Saver province

3. Intel Motherboard
Intel G41RQ Motherboard

• Support for DDR2 800(bus) or DDR2 667(bus) MHz DIMMs
• Support for up to 8 GBπ of system memory
• 8 USB 2.0 ports
• 6-channel (5.1) audio

4. MSI Motherboard
MSI-B75MA-P45
Core i7 / i5 / i3 / Pentium / Celeron (LGA1155)
DDR3 1066/1333/1600*/1800*(OC)/2000*(OC)/2200*(OC)/2400*(OC)

Audio Chipset Realtek ALC887

Max LAN Speed 10/100/1000Mbps

Video Ports D-Sub + DVI

USB 1.1/2.0 4 x USB 2.0

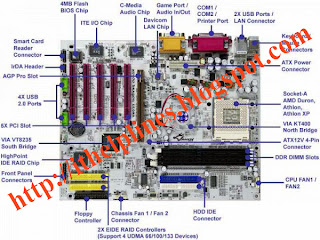

Let's see some motherboard's diagram

The 41 - series motherboard Pentium-4 (pin Less)- Celeron (pin Less) generally does not support the 800 BUS is below. The processor DUAL - CORE series Celeron Processor 800 BUS will support this type of processor. Some of the money up for made Celeron processor, but we have a lot more hits Celeron processor is the result of being deprived of the maximum speed. Bus speed and cache memory of the just agree. Memorial arrangements are being hidden high-speed cache memory. The BIOS is to reduce the video memory. Reduction in the use of the BIOS. Some of the motherboard, RAM memory is low, but the video shows.

Depending on the speed of your computer the whole configuration. So before buying a computer, consult the computer expert before buy.

Features of Motherboards:

1. Expansion Slots (PCI Express, PCI, AGP)
2. 3-Pin case fan connectors
3. Back pane connectors
4. Heatsink
5. 4-Pin (p4) Power connectors
6. Inductor
7. Capacitor
8. CPU Socket
9. Northbridge
10. Screw hole
11. Super I/O connectors
12. Floppy connection
13. ATA (IDE) disk drive Primary connectors
14. 24-pin ATX power Supply connectors
15. Serial ATA connectors
16. Coin cell battery (CMOS Backup battery)
17. RAID
18. System Panel connectors
19. FWH
20. Southbridge
21. Serial port connectors
22. USB headers
23. Jumpers
24. Integrated circuit
25. 1394 headers
26. SPDIF
27. CD-IN
28. BIOS
29. Cache memory
30. Chipset
31. Diode
32. Dip switches
33. Electrolytic
34. Fuse
35. Game port and MIDI header
36. Internal Speaker
37. LCC
38. Network header
39. Parallel port header
40. PS/2 header
41. Resistor
42. Serial port header
43. SCSI
44. Solenoid
45. Voltage regulator
46. Voltage regulator module (VRM)
47. ATX, Baby AT, BTX, DTX, LPX, Full AT, Full ATX, Micro ATX, NLX

Hopefully it will work.
